Thermoplastic welding is a versatile manufacturing process that joins compatible thermoplastic materials using heat, pressure, and controlled cooling. This method creates strong, permanent bonds that are often as strong as the material itself. It is widely used to make banners, tarps, inflatables, geomembranes, awnings and medical films, thanks to its ability to produce airtight, waterproof, and structurally sound seams.
Unlike thermoset plastics, thermoplastics soften when heated and re-solidify upon cooling, which is what makes them weldable. The choice of welding technique depends on factors such as material type, thickness, and production requirements, ensuring optimal results for each application.
- La soldadura de termoplásticos utiliza calor y presión para fusionar materiales compatibles en una sola estructura.
- Solo se pueden soldar los termoplásticos (no los termoestables), ya que pueden volver a calentarse y moldearse.
- La calidad de la costura depende en gran medida de la temperatura, la presión, la velocidad y la compatibilidad de los materiales.
- Los distintos métodos de soldadura se adaptan a diferentes materiales, tipos de juntas y necesidades de producción.
- La soldadura suele crear uniones más resistentes, más limpias y más herméticas que la costura o los adhesivos.
- Una configuración adecuada y un control riguroso del proceso son fundamentales para obtener resultados consistentes y reproducibles.
¿Qué es la soldadura termoplástica?
Thermoplastic welding is a specialized technique used to join thermoplastic materials by applying controlled heat and pressure. This process softens the plastic surfaces at the joint, allowing the polymer chains to fuse together as they cool and solidify, forming a strong, cohesive bond. Unlike mechanical fastening or adhesives, thermoplastic welding creates a seamless connection that often matches or exceeds the strength of the original material.
This method is widely favored in manufacturing due to its ability to produce durable, airtight, and waterproof joints without introducing foreign substances. Its versatility allows it to accommodate a variety of shapes and sizes, making it suitable for products ranging from banners and tarps to inflatables and medical films.
Cómo funciona la soldadura de termoplásticos
Thermoplastic welding follows a series of controlled steps that ensure a strong and durable bond between compatible materials. The process begins with thorough surface preparation, where materials must be cleaned and properly aligned to guarantee a consistent bond. Special attention is given to the joint area and weld interface to optimize bonding conditions. Next, heat is applied carefully to soften the surfaces without degrading the plastic, allowing the polymer chains to become mobile.
Following heat application, pressure is applied to bring the softened surfaces together at the joint line. This pressure facilitates molecular fusion, where the materials intermingle and form a permanent bond. As the materials cool, the polymer chains solidify, creating a continuous, airtight seam that requires no additional filler material. Precision in temperature, pressure, and timing is critical throughout the process to avoid defects such as weak seams, burn-through, or misalignment. Successful thermoplastic welding depends on matching the process parameters to the specific material and application. Our Thermoplastic Welding 101 guide covers the techniques and materials in more detail.
Key factors for repeatable success include:
- Accurate temperature control to soften without degrading materials
- Consistent dwell time to ensure proper fusion
- Uniform pressure application for seamless bonding
- Reliable machine setup or automation for process stability
- Proper alignment and surface preparation of both the parts
Tipos de métodos de soldadura de termoplásticos
Overview of Thermoplastic Welding
For fabrics and films, four welding methods do most of the work: hot air welding, hot wedge welding, RF (radio frequency) welding and impulse welding. Each one heats the material differently, so each suits different materials, seam types and production volumes.
Lo que varía entre cada método son parámetros de soldadura importantes, como la temperatura, la presión, la velocidad y otros factores que influyen en el proceso y en la calidad de la soldadura.
Soldadura por aire caliente
Blows heated air between two overlapping layers of material to melt their surfaces, then pressure rollers press them together into a single, airtight seam. No welding rod or filler is used.
Ideal para: su versatilidad y la variedad de tipos de costuras.
Soldadura por cuña en caliente
Utiliza una cuña metálica calentada que se inserta entre los materiales para calentar por contacto directo.
Ideal para: costuras largas y rectas y producción a alta velocidad.
Soldadura por radiofrecuencia (RF)
Utiliza energía electromagnética para calentar los materiales internamente a nivel molecular, convirtiendo la energía eléctrica en vibraciones moleculares oscilatorias que generan energía térmica en el plástico para lograr una unión eficaz.
Ideal para: PVC y materiales que requieren uniones resistentes y uniformes.
Soldadura por impulsos
Applies heat through electrical resistance for short, controlled bursts, using resistive heating to generate the necessary heat for welding
Ideal para: aplicaciones de precisión y materiales más finos.
Cada método difiere en:
- Velocidad
- Precisión
- Compatibilidad de materiales
- Potencial de automatización
- Aspecto de la costura
La elección adecuada depende totalmente de la aplicación, y no de cuál sea el «mejor» método en general.
¿Qué materiales se pueden soldar por termoplastia?
| Tipo de material | Descripción | Notes and Considerations |
|---|---|---|
| PVC (cloruro de polivinilo) | A widely used thermoplastic known for chemical resistance and toughness. | Commonly welded using high frequency welding; compatible with similar materials for strong bonds. |
| Vinyl-Coated Fabrics | Fabrics coated with vinyl for enhanced durability and weather resistance. | Suitable for various welding techniques; surface treatments may affect bonding. |
| TPU (poliuretano termoplástico) | Flexible, durable plastic used in applications requiring elasticity. | Requires compatible welding methods; testing recommended for complex weld joint geometry. |
| Low Density Polyethylene (LDPE) | A softer, more flexible polyethylene variant with lower melting point | Needs careful temperature control because of its lower melting point; hot air, hot wedge and impulse welders can all seal it. |
| High Density Polyethylene (HDPE) | A harder, more crystalline polyethylene with higher melting point. | Common in industrial applications; matching density and type is essential for optimal weld strength. |
| Polipropileno (PP) | A rigid, semicrystalline thermoplastic used in packaging and automotive parts. | Compatible with several welding techniques; material compatibility is key for durable welds. |
Productos e industrias habituales en los que se utiliza la soldadura de termoplásticos
La soldadura de termoplásticos se utiliza ampliamente en aplicaciones industriales con tejidos y materiales flexibles, entre las que se incluyen:
- Carteles y señalización
- Tarps and truck covers
- Toldos y marquesinas

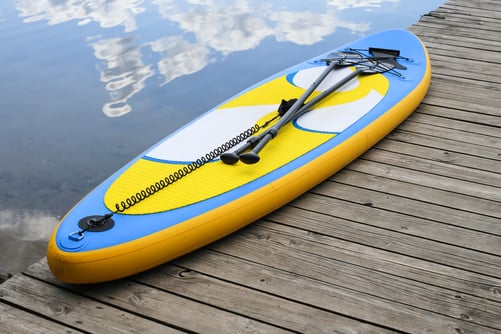

- Inflables y balsas
- Cubiertas para piscinas
- Conductos flexibles
- Geomembranas
- Bolsas de filtración
Estos productos suelen requerir:
- Costuras impermeables o herméticas
- Alta durabilidad
- Acabados limpios y elegantes
Las necesidades de producción varían: algunas dan prioridad al aspecto, mientras que otras se centran en la resistencia o la durabilidad.
La automatización resulta especialmente útil en la producción a gran escala o cuando la uniformidad es fundamental.
Ventajas de la soldadura termoplástica frente a la costura, los adhesivos y la fijación mecánica
En comparación con los métodos de unión tradicionales, la soldadura de termoplásticos ofrece varias ventajas:
- Costuras más resistentes sin agujeros de aguja
- Impermeabilidad y estanqueidad
- Aspecto más limpio, sin costuras visibles
- Mayores velocidades de producción
- Menos materiales de consumo (sin hilo, pegamento ni cinta adhesiva)
- Mayor coherencia en los sistemas automatizados
Automated welding is a cost-efficient solution for many applications, providing faster processing, reduced labor, and lower manufacturing costs compared to adhesives and mechanical fasteners.
La soldadura elimina problemas habituales como:
- Tiempo de secado del adhesivo
- Irregularidad en la aplicación del pegamento
- Rotura del hilo
Additionally, a welded seam adds no thread, glue or metal fasteners to the product.
No obstante, los métodos alternativos siguen siendo válidos en función del tipo de material y del diseño del producto.
Limitaciones y retos de la soldadura de termoplásticos
Aunque es muy eficaz, la soldadura de termoplásticos presenta algunas limitaciones:
- No todos los materiales son soldables
- Una instalación incorrecta puede provocar uniones poco resistentes
- La contaminación afecta a la calidad de la unión
- Un grosor irregular del material puede provocar inconsistencias
- Los errores del operador pueden afectar a los resultados
Las variaciones en el material entre lotes también pueden afectar al rendimiento.
Muchos de estos retos pueden abordarse mediante:
- Selección adecuada del equipo
- Optimización de procesos
- Pruebas y creación de prototipos
¿Qué hace que una soldadura de termoplástico sea resistente y duradera?
| Factor | Descripción | Importance for Weld Quality |
|---|---|---|
| Compatibilidad de materiales | Ensuring both parts are made from compatible thermoplastic materials for effective fusion bonding | Critical for strong, durable welds |
| Proper Heat Input | Applying the correct temperature to soften plastics without degrading them | Prevents weak seams or burn-through |
| Consistent Pressure | Maintaining uniform pressure during welding to bond softened surfaces | Ensures molecular intermingling and seam integrity |
| Correct Seam Overlap | Overlapping joint surfaces adequately to maximize bonding area | Enhances mechanical strength and leak resistance |
| Controlled Speed and Cooling | Managing welding speed and cooling rate to avoid defects | Reduces distortion and promotes uniform weld solidification |
| Weld Area and Interface Prep | Preparing and designing the weld interface and area for optimal joint strength | Key to achieving reliable, high-quality bond |
| Signs of a Strong Weld | Uniform seam appearance, high peel strength, leak resistance, minimal distortion | Indicates successful welding process |
| Common Defects | Burn-through, weak fusion, wrinkling, misalignment, inconsistent seam width | Must be monitored and controlled to maintain quality |
| Quality Control Methods | Visual inspection, peel testing, ongoing process monitoring | Essential for consistent, repeatable production success |
Seguridad en la soldadura y control de calidad
Ensuring safety and maintaining rigorous quality control are fundamental to successful thermoplastic welding operations. Working with thermoplastic materials involves exposure to heat, fumes, and moving machinery, making it essential to implement comprehensive safety measures. Operators should always wear appropriate personal protective equipment, such as heat-resistant gloves, safety glasses, and face masks, to protect against burns, airborne particles, and fumes generated during the welding process. Additionally, maintaining a well-ventilated workspace helps minimize the risk of inhaling potentially harmful vapors, especially when welding PVC or polyethylene.
Quality control is equally critical for achieving high quality welds. The weld joint design, material properties, and welding parameters—such as temperature, pressure, and dwell time—must be carefully optimized for each application. For example, hot air and hot wedge welding need precise control of temperature, speed and roller pressure to avoid underheating, which leads to weak bonds, or overheating, which can burn through or distort the material.
El mantenimiento periódico de los equipos de soldadura es fundamental para garantizar un rendimiento constante y evitar paradas inesperadas. Las máquinas bien calibradas ayudan a mantener los ajustes adecuados de temperatura y presión, lo que influye directamente en la resistencia y el aspecto de la soldadura. La formación de los operarios es otro factor clave; los técnicos cualificados están mejor preparados para ajustar los parámetros de soldadura, detectar posibles defectos y adaptarse a las variaciones en las propiedades de los materiales.
Al dar prioridad a la seguridad y aplicar medidas rigurosas de control de calidad, los fabricantes pueden producir de forma sistemática soldaduras que cumplan con las estrictas normas del sector, reduzcan el riesgo de defectos y prolonguen la vida útil tanto de los productos como de los equipos.
Cómo elegir el método de soldadura de termoplásticos adecuado para su aplicación
Choosing the right thermoplastic welding method is crucial to achieving strong, durable, and efficient bonds tailored to your specific application. Factors such as material type, thickness, seam strength requirements, and production volume all influence the optimal welding technique. Understanding these variables helps ensure the selected method meets both performance and aesthetic needs. This guide will walk you through the key considerations for making an informed decision on the best welding process for your project.
Step 1 – Material Type and Thickness
The choice of welding method starts with understanding the material type and thickness. Different thermoplastic materials respond uniquely to heat and pressure, so compatibility is crucial. Thickness affects how heat penetrates and bonds the parts, influencing welding parameters and technique selection. Proper evaluation ensures a strong, durable weld suited to the specific application.
Step 2 – Seam Strength Requirements
Determining the required strength of the seam guides the welding process choice. Some applications demand high structural integrity, while others prioritize aesthetic or environmental resistance. Matching the welding technique to these needs ensures a durable and reliable bond. This consideration helps select the most appropriate method for the intended use.
Step 3 – Product Shape and Size
The geometry of the product significantly influences the choice of welding method. Complex joint shapes or large components may require specialized techniques to ensure consistent, high-quality results. Proper consideration of the product's shape helps prevent issues like misalignment or uneven heating during welding.
Step 4 – Appearance Expectations
The visual quality of the weld seam is important, especially for consumer-facing products. Some welding methods produce cleaner, smoother finishes without visible marks or distortions. Balancing appearance with performance helps select the most suitable technique.
Step 5 – Production Volume
Production scale affects the choice between manual and automated welding, with high-volume manufacturing favoring automation for speed and consistency. Environmental factors like waterproofing and chemical resistance also influence method selection. Ultimately, the best welding method depends on evaluating the entire process fit rather than just machine cost.
Máquinas de soldadura de termoplásticos: qué hay que tener en cuenta
Key Features to Consider in Thermoplastic Welding Equipment
When selecting equipment, key features include precise temperature control, adjustable speed settings, consistent seam quality, level of automation, ease of use for operators, and maintenance and uptime reliability. These factors ensure the welding process is efficient, repeatable, and produces high-quality bonds.
Advanced Capabilities of Modern Welding Systems
Advanced systems may offer programmable settings, hands-free material feeding, integrated cutting or finishing, and repeatable production controls. Such features enhance productivity and accuracy, especially in high-volume manufacturing environments.
Specialized Equipment for Specific Welding Techniques
Each method needs its own equipment: hot air welders for curves, corners and detail work; hot wedge welders for long, straight seams; RF welders for PVC and polyurethane films that need precise, uniform bonds; and impulse welders for thin films and precise seals.
Aligning Equipment with Product Requirements and Workflow
Choosing the right machine involves aligning its capabilities with both your product requirements and workflow. Proper equipment selection supports optimal welding performance, reduces downtime, and meets production goals effectively.
Cómo Miller Weldmaster las aplicaciones de soldadura de termoplásticos
Sistemas de aire caliente
Miller Weldmaster offers hot air welding machines that utilize heated air to soften the surfaces of thermoplastic materials. This method allows for precise control over temperature and airflow, enabling effective bonding of various plastics. Hot air systems are versatile and suitable for welding a wide range of materials, making them ideal for applications requiring strong and consistent seams.
Sistemas de cuña caliente
Hot wedge systems employ a heated metal wedge to generate heat through direct contact with the materials being joined. This technique is particularly effective for producing long, straight seams at high speeds. Miller Weldmaster's hot wedge welders ensure uniform heat distribution and pressure, resulting in durable and reliable welds for industrial fabrics and similar materials.
Radio Frequency Equipment
Radio frequency (RF) welding machines from Miller Weldmaster use high-frequency electromagnetic waves to heat thermoplastic materials internally. This process creates strong, uniform bonds without the need for external heat sources. RF welding is especially suitable for materials like PVC and polyurethane, providing airtight and waterproof seams for applications such as banners and tarps.
Impulse Welding Solutions
Impulse welding involves applying heat through electrical resistance in short, controlled bursts. Miller Weldmaster's impulse welders offer precision and efficiency, making them well-suited for thinner materials and applications requiring exact temperature control. This method produces clean, strong welds with minimal thermal distortion.
Supported Manufacturing Applications
These thermoplastic welding technologies support manufacturers producing a variety of products, including banners and signage, tarps and covers, inflatables, ducting and filtration systems, geomembranes, awnings, and industrial fabrics. Miller Weldmaster's equipment is designed to meet the diverse needs of these industries, ensuring high-quality, durable seams.
Key Advantages of Miller Weldmaster Solutions
Miller Weldmaster's thermoplastic welding equipment offers several key advantages, such as increased production efficiency, reduced labor requirements, and stronger, more consistent seams. Their flexible solutions cater to multiple applications, and they provide custom equipment tailored to specialized manufacturing needs.
Commitment to Application Matching
Beyond simply selling machines, Miller Weldmaster focuses on helping manufacturers match the right welding technology to the right application. This approach ensures optimal results, improved product quality, and efficient production processes tailored to specific industry requirements.
Conclusión
Thermoplastic welding joins PVC, TPU, polyethylene, polypropylene and coated fabrics into seams that are airtight, waterproof and often as strong as the material itself. The right method depends on the material, the seam and the production volume: hot air for flexibility, hot wedge for long straight seams, RF for PVC and polyurethane films, and impulse for thin films. Miller Weldmaster helps manufacturers test their material and choose the machine that fits.
